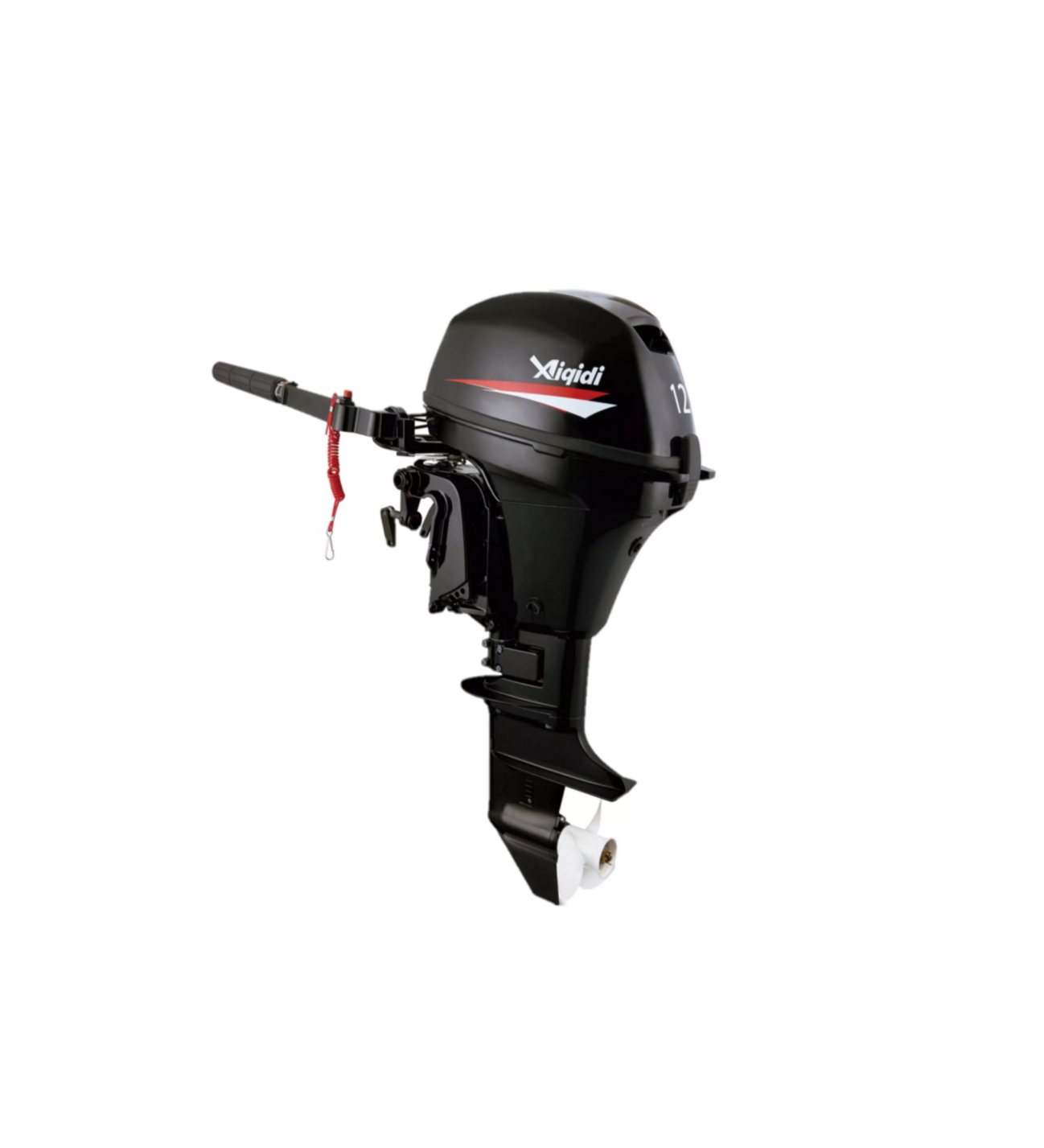

F12 4-Stroke Outboard Motor Series

9.9 horsepower outboard motor is suitable for small vessels of different materials, such as inflatable boats, wooden boats, FRP boats, and plastic boats.

Category:

Description

4 Stroke Outboard Motor Series

Engine type: 4 Stroke

Idle Speed r/min (Neutral Position): 1000-1100

Displacement (cc): 212

Bore x Stroke (mm): 56 x 43

Max. Power Output (KW/r/min): 8.8(12)@6000

Gear Ratio: 2.08(27/13)

Transom height (mm) (S/L):  S:431 , L:558

Fuel Tank (L): 12

Propeller Size (in): 3-8 1/2″ x 8 1/2″

Net Weight (kgs): S:49 / 40kgs , L:50 / 41kgs
